Upgrading Heng Long Tanks - Receiver Boards

A Step By Step Visual Guide


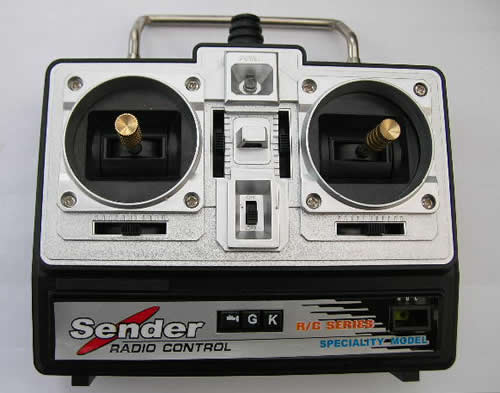

Can be used to replace a faulty joystick or a faulty transmitter board.
Click here for more information on Heng Long Tanks.

Click for larger image

Click for larger image

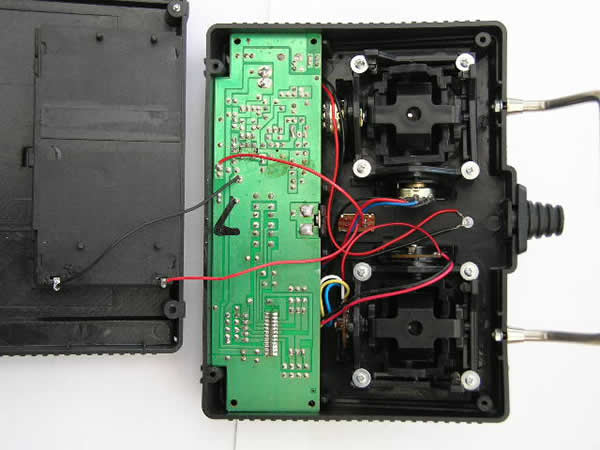

1. Inside the transmitter showing connection to battery compartment.
Click for larger image
2. View of main transmitter circuit board .
Click for larger image

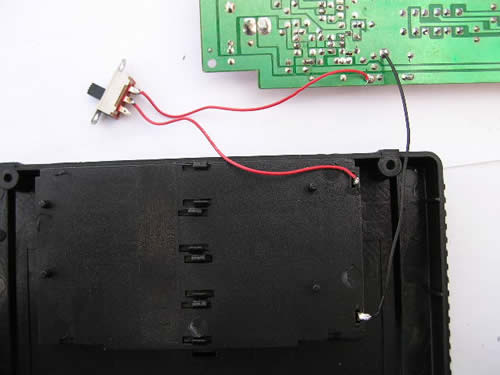

3. Close-up showing arrangement of wires from circuit board to battery compartment and switch.
Click for larger image

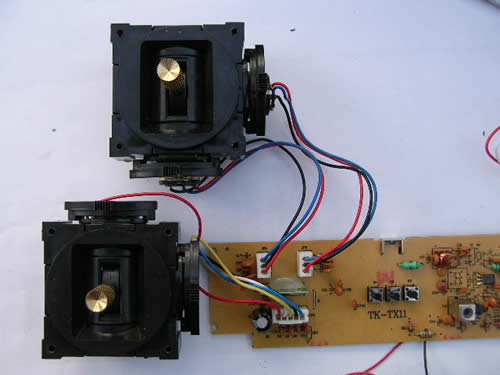

4. View showing two joystick and connection to circuit board.
Click for larger image

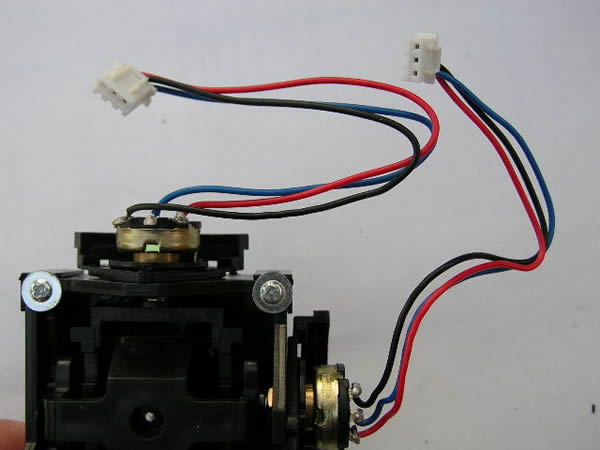

5. The joystick with the two 3-pin connectors has the working trims for proportional speed.
Click for larger image

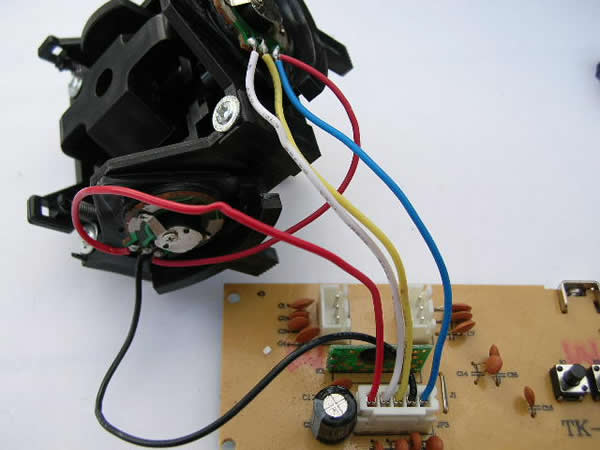

6. The joystick with the 5-pin connector does not have working trims. The connector is also different from previous non-smoke and sound version. *

* If upgrading from the older transmitter from the non-smoke and sound version and the joystick with the non-working trims is reused, use photo 6 to work out position of each wire from the joystick to the socket on the circuit board and solder each in place.
