Upgrading Heng Long Tanks - Gearboxes

A Step By Step Visual Guide

Can be used to replace worn gearboxes with nylon gears with a replacement
or to upgrade to a pair of metal heavy duties gearboxes. Click here for more information on Heng Long Tanks.

Click for larger image

Click for larger image

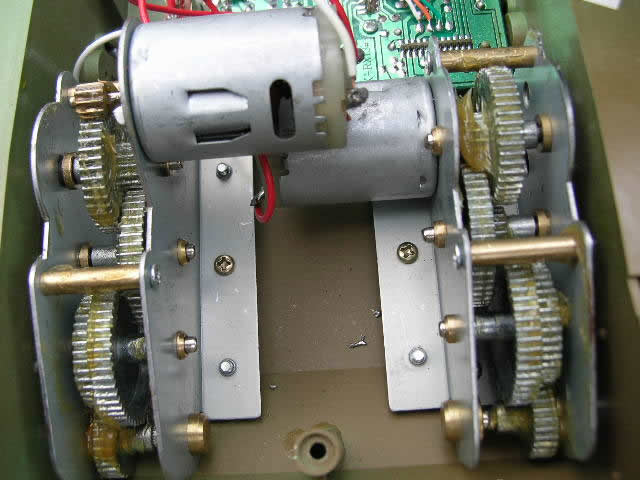

1. Unscrew gearboxes (left & right) from lower hull.
Click for larger image

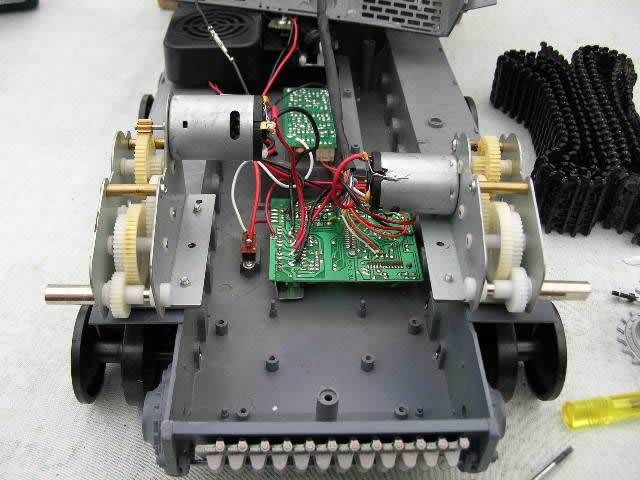

2. Remove motors from gearboxes.
Click for larger image
3. Check that new (metal) gearboxes are greased and can move freely.
Click for larger image
4. Fit motors into new gearboxes.
Click for larger image
5. Fix new gearboxes with motors into lower hull.
Click for larger image
Hints: Use a screw driver with a magnetic head (or bluetack) to hold screw in place when fixing gearboxes to lower hull.

If you are upgrading to metal heavy duty gearboxes, we recommend that you also upgrade the plastic sprockets to metal sprockets at the same time. Upgrade to metal heavy duty gearboxes and metal sprockets is recommended if you intend to run metal tracks on your tank.

Note that no soldering is required! All you need is a set of screw drivers.
