Upgrading Heng Long Tanks - Hull Separation

A Step By Step Visual Guide


Use this guide to remove the upper hull from the lower hull to replace or upgrade internal components such as gearboxes, smoke unit or receiver boards. Click here for more information on Heng Long Tanks.

Click for larger image

Click for larger image

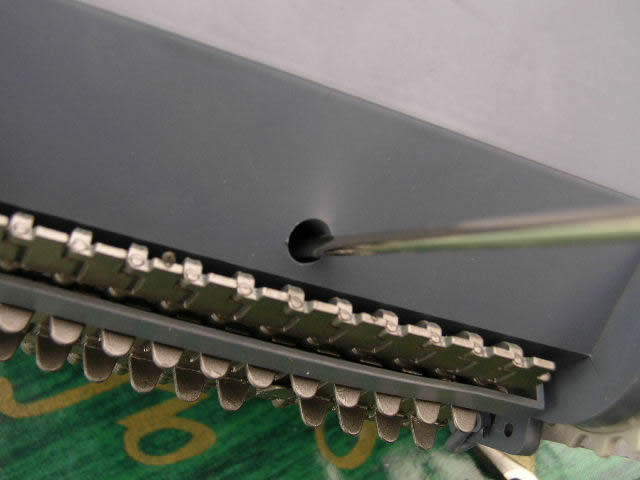

1. remove screw from bottom front of lower hull.
Click for larger image

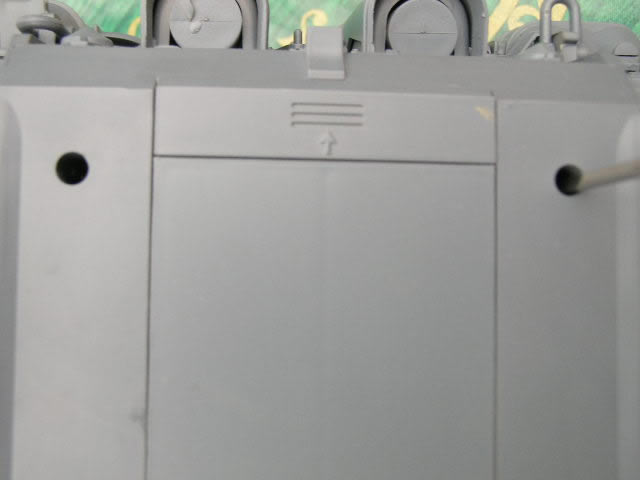

2. Remove two screws from bottom rear of lower hull.
Click for larger image

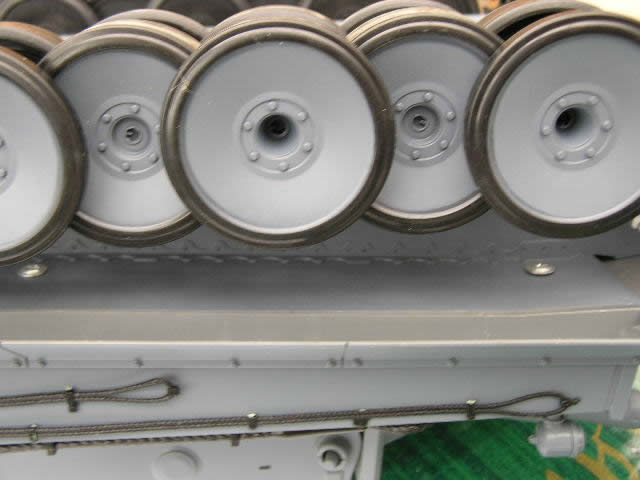

3. Remove two silver screws from above the roadwheels.
Click for larger image

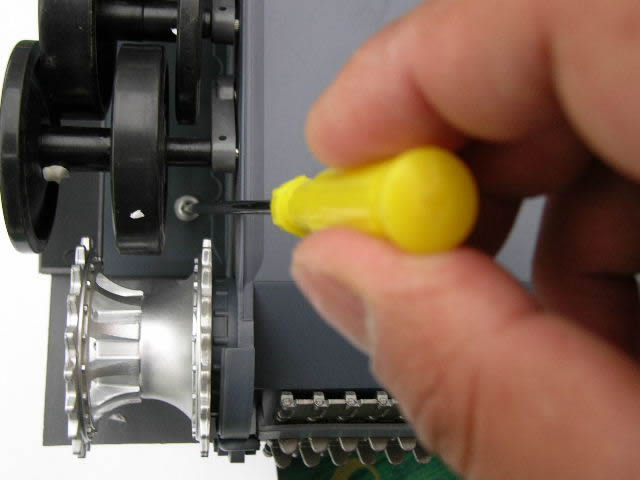

4. One screw is towards the front just behind the sprocket.
Click for larger image

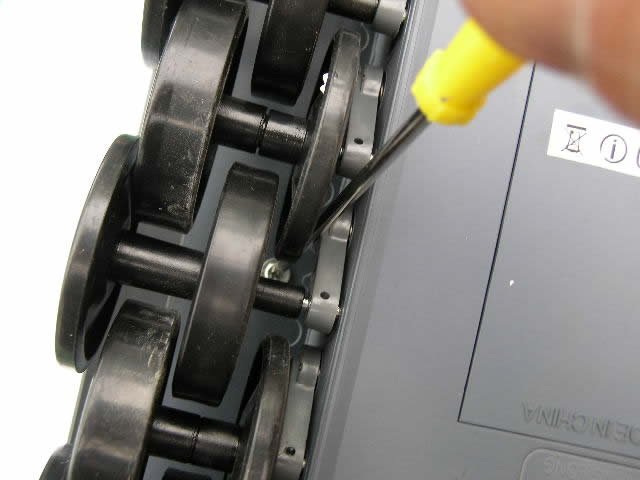

5. The other is near the middle.
Click for larger image

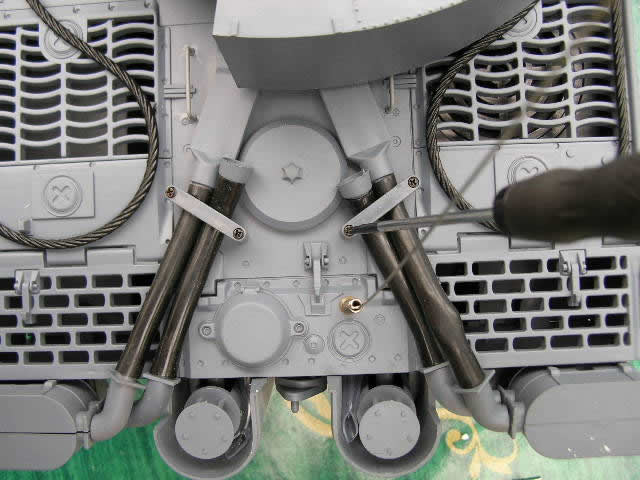

6. Remove the clamps holding the air hoses on engine deck in place.
Click for larger image
7. Alternatively remove just hoses from air filter pipes.
Click for larger image

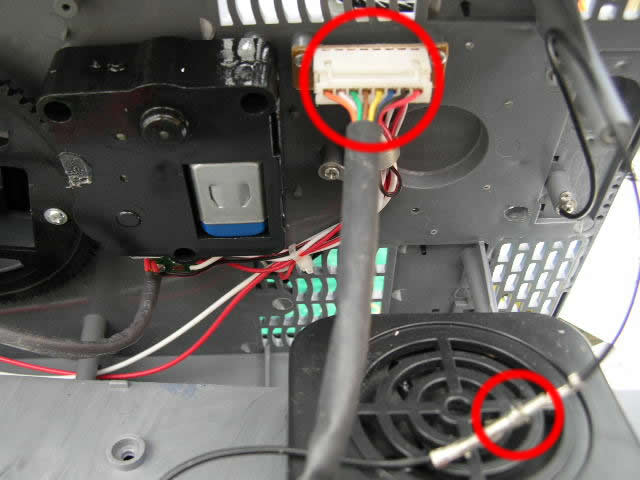

8. Note main connector (top middle in white) and aerial connector (bottom right in silver).
Click for larger image

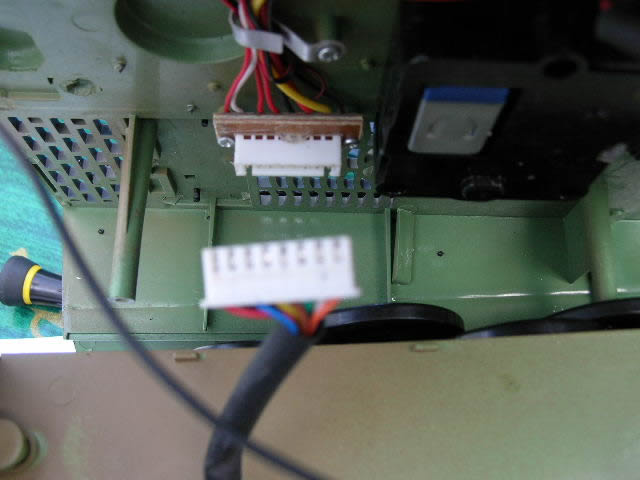

9. Disconnect main connector (white) as shown above.
Click for larger image

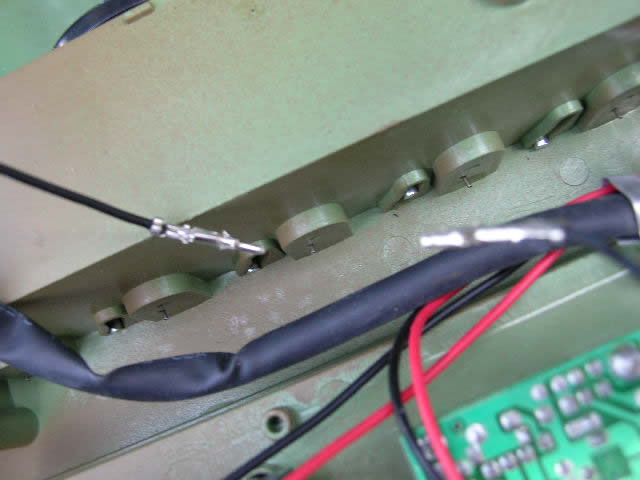

10. Disconnect aerial connector as shown above.
Click for larger image
11. Lower hull separated from upper hull ready to be worked upon.
Click for larger image
12. Upper hull separated from lower hull. Note turret ring and rotation gear.
